The Autel MaxiSYS MS909 S2 sits in a very different category from the entry-level and mid-range diagnostic scanners most DIY users consider.
Currently listed at $3,799 on Autel-US, the MS909 S2 is an advanced professional diagnostic tablet designed for serious repair shops and technicians who need high-level vehicle diagnostics, ECU programming, topology analysis, advanced live-data analysis, and modern vehicle communication capabilities. Autel-US describes it as an 11-inch wireless diagnostic platform with near-OEM-level diagnostic and service capability.
At this price, the important question is not simply whether the MS909 S2 has impressive specifications.
It clearly does.
The real question is:
Does a professional shop actually need what the MS909 S2 offers, and is it the right S2-series tool for the money?
That distinction matters because Autel also sells the more advanced MS919 S2 and Ultra S2, while less expensive models such as the MS906MAX and MK906 Pro may already cover many everyday diagnostic jobs.
This review looks at the MS909 S2 from that buyer’s perspective.

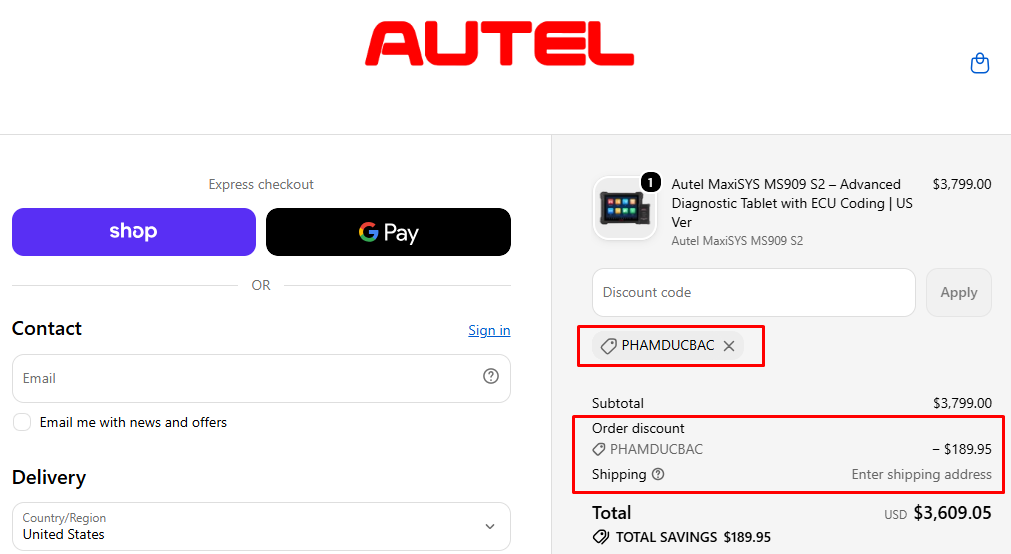

Link coupon: https://dealvit.com/store/autel-us
Buy here: https://autel-us.com/products/autel-maxisys-ms909-s2?ref=hxyceffj&utm_source=goaffpro
Note: This is a buyer-focused review based on current product information published by Autel-US. It is not presented as an independent hands-on laboratory test.
Autel MS909 S2 at a Glance
The MS909 S2 is an 11-inch wireless professional diagnostic tablet compatible with U.S., Asian, and European vehicles from 1996 onward, according to Autel-US. It combines full-system diagnostics with ECU coding, adaptations, bi-directional testing, topology mapping, advanced live-data analysis, and more than 45 maintenance and reset functions.

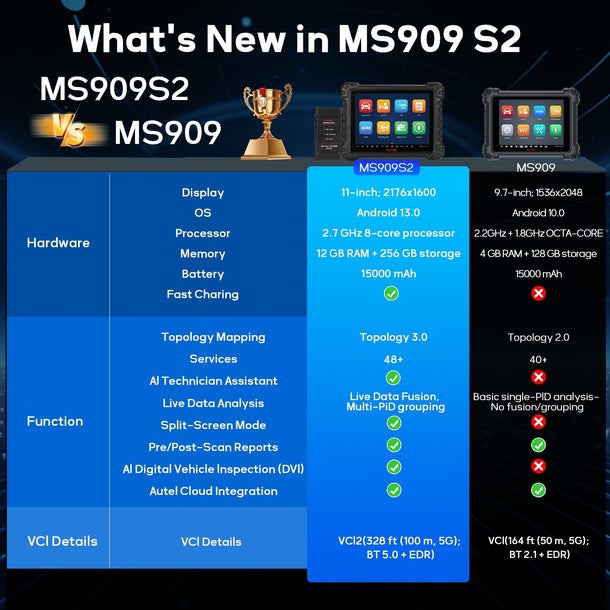

The current hardware represents a substantial upgrade over the previous-generation MS909.
Key specifications
| Feature | Autel MS909 S2 |
|---|---|
| Current listed price | $3,799 |
| Display | 11-inch anti-glare |
| Resolution | 2176 × 1600 |
| Processor | 2.7GHz 8-core |
| RAM | 12GB |
| Storage | 256GB |
| Operating system | Android 13 |
| Battery | 15,000mAh |
| Wireless | Wi-Fi 6 / Bluetooth 5.0 |
| VCI | MaxiFlash VCI2 |
| Programming | J2534 Pass-Thru |
| Diagnostics | Full-system |
| Topology | Topology Mapping 3.0 |
| Active tests | Yes |
| ECU coding | Yes |
| Service functions | 45+ |
| Free updates | 1 year |
| Intended user | Professional technicians and repair shops |
Autel-US also states that the VCI2 supports D-PDU, J2534, RP1210, DoIP and CAN FD protocols.
What Is the Autel MS909 S2?
The MS909 S2 is essentially a high-end professional diagnostic platform built around the idea of giving a technician a much deeper view of the vehicle’s electronic architecture.
That means it is not primarily competing with inexpensive OBD2 scanners.
It is designed for situations where a technician needs to:
- Scan multiple vehicle systems
- Analyze live data
- Perform active tests
- Program or code supported ECUs
- Analyze vehicle network topology
- Work with newer communication protocols
- Perform service and reset procedures
- Document pre- and post-repair scans
- Work with security gateways on supported vehicles
- Use J2534 Pass-Thru programming
Autel-US specifically highlights Topology 3.0, enhanced live-data analysis, ECU coding and adaptations, security-gateway access, and advanced VCI capabilities as major parts of the MS909 S2 platform.
So the MS909 S2 should be viewed less as “a really good scanner” and more as a professional diagnostic workstation.

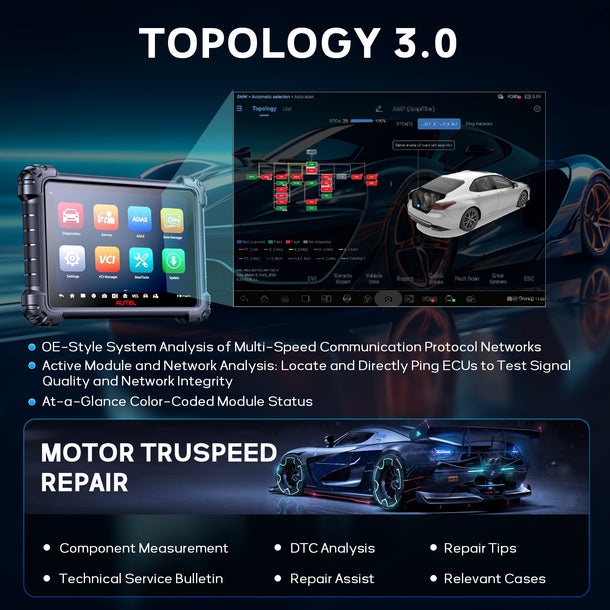

1. The Biggest Upgrade: Topology Mapping 3.0
One of the features that makes the MS909 S2 particularly interesting is Topology Mapping 3.0.
Modern vehicles can have a complicated network of electronic control modules.
Finding a fault is not always as simple as reading a single diagnostic trouble code.
Topology mapping helps technicians visualize the relationships between modules and communication networks.
Autel says the MS909 S2 can use Topology 3.0 for dynamic network analysis and can ping and monitor individual module communications across multiple networks.
This can be particularly valuable when diagnosing communication-related problems.
For example, a technician may encounter multiple fault codes across different modules.
Rather than treating every code as an independent problem, a network visualization can help identify whether several faults may be related to a communication issue.
That is a much more sophisticated diagnostic approach than basic code reading.

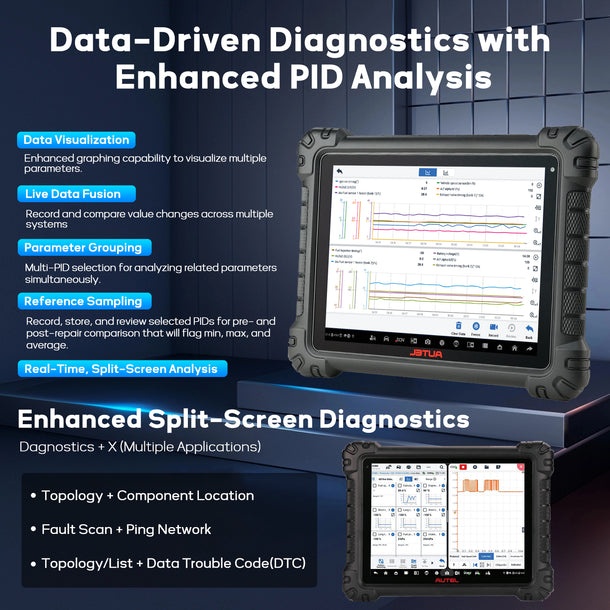

2. Advanced Live Data Analysis
The MS909 S2 also goes significantly deeper into live-data analysis.
Autel-US lists features including:
- Live Data Fusion
- Reference Sampling
- Parameter Graphing
- Multi-PID grouping
- Enhanced PID analysis
The purpose is to help technicians compare and interpret data rather than simply display a long list of numbers.
This matters when troubleshooting faults that do not necessarily produce a straightforward diagnostic code.
For example, a technician may need to compare several sensor values at the same time and determine whether their behavior is consistent with the suspected fault.
The more complicated the vehicle becomes, the more useful good data visualization can be.
This is one area where a professional diagnostic platform can save time that a cheaper scanner simply cannot replicate.
3. Full-System Diagnostics and Bi-Directional Testing
The MS909 S2 provides full-system diagnostics and bi-directional testing across supported vehicles.
Autel-US lists:
- All-system diagnostics
- Live data
- ECU information
- Active tests
- Pre- and post-scan reporting
- Coding
- Adaptations
- Special functions
as part of the platform.
Bi-directional testing is particularly useful because a diagnostic scanner can do more than passively receive information from the vehicle.
A technician can command supported components and observe their response.
That can help distinguish between potential problems involving:
- Components
- Actuators
- Wiring
- Communication
- Control modules
The exact tests remain vehicle-dependent, but for a professional shop, active testing is an important part of the MS909 S2’s value proposition.
4. ECU Coding and Adaptations
The MS909 S2 is designed for more advanced ECU work than the lower-priced Autel scanners we’ve covered earlier in this series.
Autel-US lists coding and adaptations among its core functions and also highlights security-gateway access for supported newer vehicles.
This can be important for technicians working on vehicles where replacing or configuring electronic modules requires more than simply clearing fault codes.
However, buyers need to understand an important limitation:
ECU coding is not universal.
A diagnostic tablet may support coding, but the exact coding functions available depend on the vehicle, manufacturer, model year, ECU and software support.
Autel-US specifically identifies security-gateway access for Mercedes-Benz, Nissan, VW/Audi and Stellantis vehicles, with additional account or token requirements depending on the manufacturer.
So if coding is the main reason you are considering an MS909 S2, check the exact vehicle coverage before buying.
5. J2534 Pass-Thru and Modern Communication Protocols

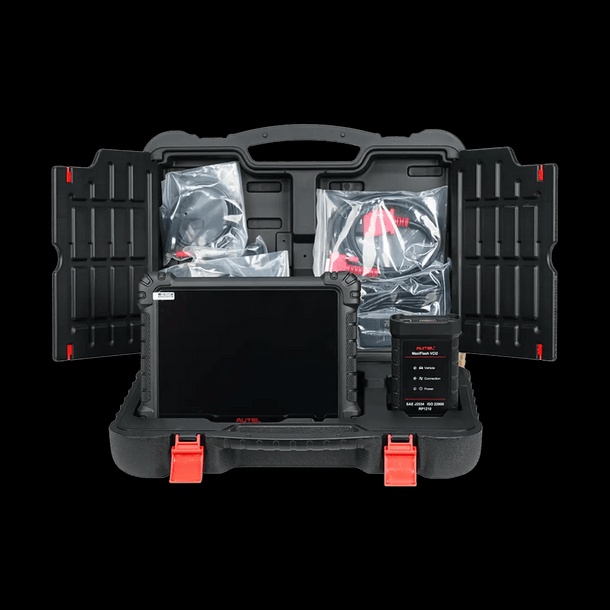

Another important feature is the MaxiFlash VCI2.
The VCI2 is not simply a wireless connector.
Autel-US says it supports:
- D-PDU
- SAE J2534
- RP1210
- DoIP
- CAN FD
and provides J2534 Pass-Thru programming capability.
This makes the MS909 S2 much more relevant to professional workshops dealing with newer vehicles and more advanced programming workflows.
The VCI2 also helps distinguish the MS909 S2 from the more expensive MS919 S2.
The MS909 S2 uses the VCI2, while the MS919 S2 and Ultra S2 use the more advanced VCMI2 interface with integrated measurement tools.
That difference becomes extremely important when deciding which S2 model to buy.
6. The Hardware Is Built for Professional Use
The MS909 S2 received a substantial hardware upgrade compared with the previous MS909 generation.
Autel-US lists:
- 2.7GHz 8-core processor
- 12GB RAM
- 256GB storage
- Android 13
- 11-inch 2176 × 1600 anti-glare display
- 15,000mAh battery
- Wi-Fi 6
- Bluetooth 5.0
The company says the S2’s hardware overhaul is designed to improve responsiveness and multitasking.
For a professional diagnostic tablet, these specifications matter.
Large diagnostic databases, live-data graphs, topology maps and multiple diagnostic functions can place considerably more demands on a device than a simple code reader.
The 12GB of RAM and 256GB of storage also provide considerably more headroom than the lower-priced Autel scanners in this content cluster.
7. Is the 11-Inch Screen Useful?
An 11-inch display may not sound revolutionary.
But for professional diagnostics, it can be extremely useful.
A technician may need to display:
- Vehicle topology
- Multiple PIDs
- Graphs
- ECU information
- Scan results
- Coding menus
- Diagnostic reports
- Repair information
at the same time.
The 2176 × 1600 resolution also gives the MS909 S2 a high-density workspace. Autel specifically positions the display as part of the upgraded S2 hardware platform.
The anti-glare screen is another practical advantage when the tablet is being used around vehicles and workshops.
8. More Than 45 Maintenance and Reset Functions
The MS909 S2 includes 45+ maintenance and reset service functions, according to Autel-US.
The exact functions available vary by vehicle, but the purpose is to cover a wide range of routine service procedures.
This can include functions such as:
- Oil reset
- Battery-related service
- Electronic parking brake service
- Steering-angle calibration
- DPF-related service
- Throttle adaptation
- ABS-related procedures
- Injector-related functions
- Transmission-related adaptations
- Other vehicle-specific resets and calibrations
The important point is not the number “45+” by itself.
A professional technician should ask:
Does the MS909 S2 support the specific service procedures my shop performs?
That is the metric that determines whether the feature list translates into real value.
9. Security-Gateway Access Is Increasingly Important
Modern vehicles increasingly use security systems that restrict access to certain electronic functions.
The MS909 S2 has authorized security-gateway access for certain manufacturers, including:
- Mercedes-Benz
- Nissan
- VW/Audi
- Stellantis
according to Autel-US. Account, subscription or token requirements can apply depending on the manufacturer.
This is an important feature for professional shops working on newer vehicles.
It also illustrates why a modern diagnostic tool needs more than good hardware.
Software access, manufacturer authorization and current coverage are equally important.
10. MAX and AI-Assisted Vehicle Inspection
The MS909 S2 also introduces features beyond traditional diagnostics.
Autel-US highlights MAX, a hands-free virtual assistant that allows voice-controlled navigation.
The tablet also includes an AI-enhanced digital vehicle inspection system designed to identify visual defects such as dents, scratches and surface damage.
For a technician, these features may not directly diagnose an engine problem.
But they can contribute to a broader workshop workflow.
A digital inspection system can help document vehicle condition before repair and communicate findings to customers.
That is particularly useful for businesses where inspection and customer communication are part of the service process.
11. MOTOR TruSpeed Repair Information
The MS909 S2 also includes one year of free access to MOTOR TruSpeed integrated repair information, according to Autel-US.
This is potentially significant because diagnostic work does not stop when a fault is identified.
The technician may still need:
- Repair information
- Procedures
- Specifications
- Diagnostic guidance
- Additional reference material
Having repair information integrated into the diagnostic workflow can reduce the need to switch constantly between separate systems.
For a professional shop, that can translate into time savings.
12. Remote Expert Ready
Autel-US also describes the MS909 S2 as Remote Expert-ready, allowing technicians to connect with programming experts using OE tools and software remotely.
This is another indication of where Autel sees the MS909 S2 fitting into a professional environment.
The device is not simply intended to be a diagnostic scanner.
It is becoming part of a larger ecosystem involving:
Diagnostics → Programming → Repair Information → Remote Expertise → Documentation
For a professional shop, that broader workflow can be more valuable than any individual feature.
13. MS909 S2 vs MS919 S2: What Is the Real Difference?
This is probably the most important buying decision for someone considering an S2-series Autel scanner.
The MS909 S2 currently sells for $3,799 on Autel-US.
The MS919 S2 is currently listed at $4,599.
That is an $800 difference at the current listed prices.
So what are you getting for the additional money?
The main difference is the vehicle communication and measurement hardware.
MS909 S2
Uses:
MaxiFlash VCI2
This is a high-performance communication interface supporting diagnostic communication and programming protocols.
MS919 S2
Uses:
MaxiFlash VCMI2
The VCMI2 adds integrated measurement capabilities, including:
- 4-channel oscilloscope
- Multimeter
- Waveform generator
- CAN-bus tester
- VCI
- J2534 Pass-Thru
- Remote Expert capability
Autel-US’s own comparison describes the VCMI2 as a 6-in-1 diagnostic interface.
This creates a very clear decision.
Choose the MS909 S2 if:
You primarily need advanced digital diagnostics, ECU programming and network analysis and already have a quality oscilloscope or other electrical testing equipment.
Consider the MS919 S2 if:
You want the diagnostic tablet and advanced electrical measurement equipment integrated into one platform.
This distinction is far more important than simply comparing RAM, screen size or processor speed.
14. MS909 S2 vs Ultra S2
The next step up is the Ultra S2.
Autel-US’s comparison places the Ultra S2 above the MS919 S2 and MS909 S2, with a larger 13.7-inch display, 512GB storage and the VCMI2 measurement platform.
The Ultra S2 also adds more advanced data visualization and workflow capabilities.
So the three products can be viewed as a progression:
MS909 S2
→ advanced professional diagnostics
MS919 S2
→ advanced diagnostics + integrated electrical measurement
Ultra S2
→ maximum data visualization, measurement and flagship workflow
That makes the MS909 S2 particularly interesting for buyers who want the high-end diagnostic platform but do not need an integrated oscilloscope and multimeter.
15. Who Should Buy the MS909 S2?
Professional Repair Shops
This is the clearest target audience.
If your shop regularly works on modern vehicles and needs advanced diagnostics, coding, adaptations and network analysis, the MS909 S2 can make sense.
Its value increases when the tool is being used every day.
Diagnostic Specialists
Technicians who specialize in difficult electrical and communication faults may also benefit from Topology 3.0, advanced live-data analysis and modern communication protocols.
However, if component-level electrical testing is a major part of your workflow, the MS919 S2 may make more sense because of its integrated VCMI2.
Shops That Already Own an Oscilloscope
This is perhaps the most interesting MS909 S2 buyer.
If your shop already has a quality oscilloscope, multimeter and electrical testing equipment, paying extra for the MS919 S2’s integrated measurement hardware may not make sense.
The MS909 S2 can give you the advanced diagnostic platform while allowing you to continue using your existing measurement equipment.
16. Who Probably Shouldn’t Buy It?
Casual DIY users
At $3,799, the MS909 S2 is far beyond what most casual car owners need.
If you are simply looking for check-engine diagnostics, there is no economic reason to spend this much.
Most ordinary DIY mechanics
Even serious DIY users may find that the MX900, MK906 Pro or MS906MAX provides enough capability for their needs.
The MS909 S2 becomes easier to justify when diagnostic work is frequent and professional.
Technicians who primarily need an oscilloscope
If your diagnostic workflow frequently requires waveform analysis and component-level electrical testing, the MS919 S2 may offer better value because its VCMI2 integrates those tools.
Specialized EV, ADAS or heavy-duty shops
If your primary work is highly specialized, a dedicated Autel EV, ADAS or commercial-vehicle platform may be a better choice.
17. What About Software Updates and Ownership Cost?
This is perhaps the most important financial issue with the MS909 S2.
The product currently includes one year of free software updates.
Autel-US’s S2 comparison states that the approximate annual Total Care Program renewal for the MS909 S2 is $1,295 after the initial free period.
That means the cost of ownership is significant.
For a professional shop, this may be perfectly reasonable if the scanner is used frequently and the latest vehicle coverage and software features generate enough value.
But for occasional use, it is a major consideration.
The correct calculation is not:
$3,799 — can I afford the scanner?
It is:
$3,799 + future update costs — will this tool generate enough value for my business?
That is a much more realistic way to evaluate a professional diagnostic platform.
Autel-US also states that the S2 tools can continue operating on their last updated software if a subscription is not renewed, although new vehicle coverage, features and software fixes will not be added until renewal.
18. Is the MS909 S2 Worth $3,799?
For the right professional user, yes.
But the MS909 S2 should not be judged against a $300 or $500 scanner.
It belongs in a completely different category.
The real competition is:
MS906MAX
vs.
MS909 S2
vs.
MS919 S2
vs.
Ultra S2
The MS909 S2 makes the strongest case when the buyer needs high-end digital diagnostics, programming and network analysis but does not need the integrated oscilloscope/multimeter package of the MS919 S2.
That distinction could save a shop hundreds of dollars at purchase.
And if the shop already owns good electrical testing equipment, the argument becomes even stronger.
Autel MS909 S2 Pros and Cons
Pros
- High-end professional diagnostic capability
- Topology Mapping 3.0
- Advanced live-data analysis
- ECU coding and adaptations
- Bi-directional testing
- J2534 Pass-Thru
- DoIP and CAN FD
- D-PDU and RP1210 support
- 12GB RAM
- 256GB storage
- Android 13
- 11-inch high-resolution anti-glare display
- 15,000mAh battery
- Wi-Fi 6
- Security-gateway access on supported manufacturers
- 45+ maintenance/reset functions
- Digital vehicle inspection and MAX assistant
- One year of MOTOR TruSpeed access
- Remote Expert-ready
Cons
- $3,799 is a substantial investment
- Annual update renewal can be expensive
- No integrated oscilloscope/multimeter in the VCI2
- MS919 S2 may offer better value for shops needing electrical measurement
- Many DIY users will never use its advanced capabilities
- Vehicle-specific coverage still needs to be verified
- Specialized EV, ADAS and heavy-duty work may require additional equipment
Final Verdict: Is the Autel MS909 S2 Worth Buying?
The MS909 S2 is a serious professional diagnostic platform, and its value depends heavily on the type of work your shop performs.
At the current $3,799 price, this is not a scanner to buy simply because it has impressive specifications.
It makes sense when you need:
Advanced diagnostics
- ECU coding
- J2534 programming
- Topology analysis
- Advanced live data
- Bi-directional testing
- Modern vehicle communication
- Security-gateway access
and you expect to use those capabilities regularly.
The MS909 S2 is particularly compelling if your shop already has a quality oscilloscope and multimeter.
In that situation, buying the MS909 S2 instead of the MS919 S2 can avoid paying for measurement hardware you already own.
On the other hand, if you want an all-in-one diagnostic and electrical-testing platform, the MS919 S2 deserves serious consideration.
And if your shop handles the most complex network diagnostics and wants maximum screen size, storage and data-analysis capability, the Ultra S2 is the logical step higher.
Bottom line
The Autel MS909 S2 is best for professional technicians who need high-end digital diagnostics and programming without necessarily needing an integrated oscilloscope and multimeter.
It is expensive, but its value comes from the amount of professional diagnostic work it can support—not from the number of features on the specification sheet.
Before buying, verify compatibility with the exact vehicles and procedures you need, and calculate the long-term Total Care Program cost as part of the purchase decision.
Where to Check the Current MS909 S2 Price
Autel-US currently lists the MS909 S2 at $3,799, with one year of free software updates. Pricing, availability, bundles and update options can change, so verify the current configuration before purchasing.
If you purchase through DealVit, use the PHAMDUCBAC coupon where applicable and access the merchant through the DealVit affiliate path so the purchase can be properly attributed.
Affiliate disclosure: DealVit may earn a commission if you purchase through our affiliate link. This does not increase your purchase price.
Related Autel Content
- Best Autel Diagnostic Tools for 2026
- Autel Review 2026: Is Autel Worth It for Professional Mechanics and DIY Users?
- Autel MX900 Review
- Autel MK808Z Review
- Autel MK906 Pro 2026 Review
- Autel MS906MAX Review
- Autel MS919 S2 Review (upcoming)
- Autel MS909 S2 vs MS919 S2 (future comparison)
- Autel MS919 S2 vs Ultra S2 (future comparison)
